Product Details


1KW 1000W Solar Panels Battery on Grid Tie Inverter DC 22-65V/45-90V with inter Limiter for Home PV Power System 110v 220v output

1000w Solar Power Grid Tie Inverter

–with Limiter / Sensor Battery Discharge Power Mode

–DC 22V-60V or 45V-90V (optional )

–AC 110V 120V 220V 230V 240V ( auto work )

Why we produced the GRID TIE INVERTER WITH LIMITER ?

It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to insignificant levels, if not eliminated — because in some countries,the producer pays for the excess power it gives to the distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will be charged for power even if it is given to the grid, and this is the problem

This is the 2nd generation grid tie inverter with limiter.

With the 2nd generation GTIL,we integrated the limit function inside the GTI-We call this internal limiter.In this way,No additional limiter module is needed,reduced customer’s cost,more easier for installation.But in case customer install inverter far away from the main circuit breaker,we also enable the 2nd GTIL work with stand-alone limiter,we call this-external limiter.For sure,the inverter can work under normal Grid tie-no limit mode,just set on the nice LCD and save your setting.

New upgraded firmware enable battery or solar limiter current and power model.

User can set the maximum output power of inverter , this can make the inverter work at cooler condition as user want and extend the lifespan of the inverter .
User can set kick in/off voltage of the inverter which can flexible using with battery bank depend on users mind and can prevent battery bank from over discharged .

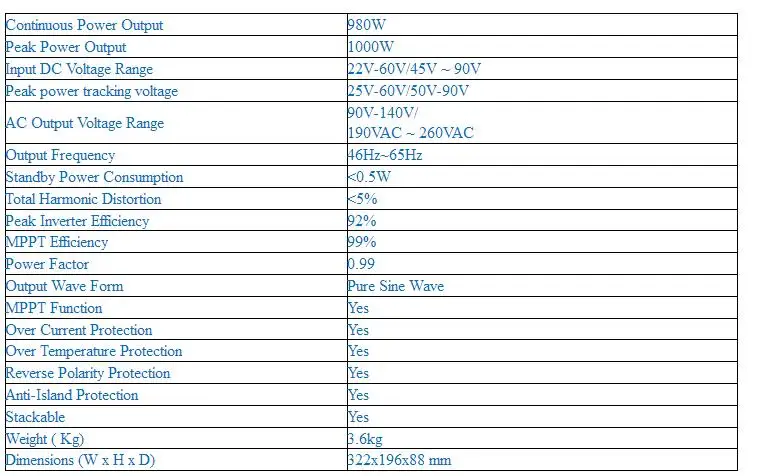

Technical Data

Note: there are 22v-60v and 45v-90v input voltage optional,

Please choose DC22v-60v or 45v – 90v , and leave us a message when you place the order . Thank you very much .

Example message : 22V-60V

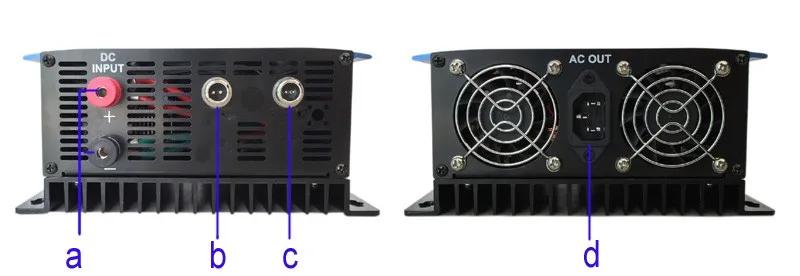

Description:

a: DC input , for solar panels connection

b: Connector for external limiter

c: Connector for internal limiter

d: AC output , use AC cable to connect to home grid

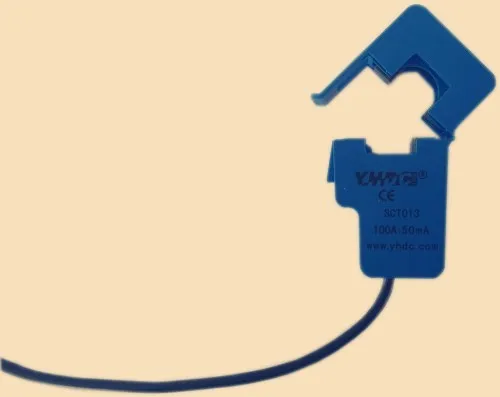

Sensor Clamp :

Packing List :

1. Solar Grid Inverter with Limiter(built-in)—–1unit

2. AC cable————-1 pcs

3. Internal type Limiter clamp with sensor & 2m cable—-1pcs

4. Warranty card—-1pcs

5. User Manual —-1pcs

Inverter Using:

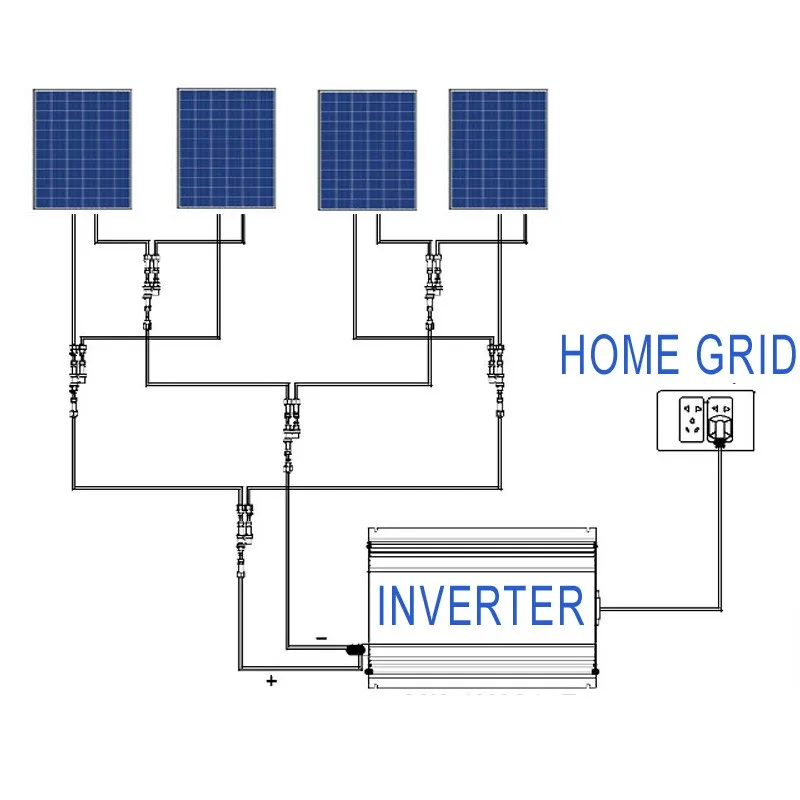

1. Standard Grid Tie Inverter Model

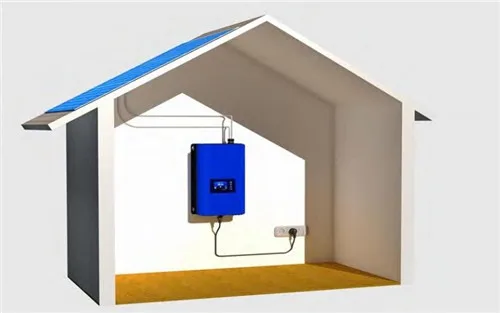

Single 1pcs inverter using:

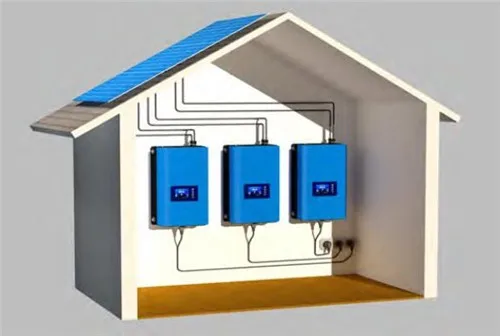

more than 1 unit inverters stackable using:

2. Using Grid Tie Inverter With Limiter Model

2.1 The Grid Tie Inverter with Limiter delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid.

2.2 The heart of the Grid Tie Inverter with Limiter is the Limiter Module (LM). The LM continuously sampled the power needed by the load through the current sensor connected after the Main Circuit Breaker. The LM then will process the signal. It then sends signal to Grid Tie Inverter how much power to deliver to the load in real time.

2.3 The user, after installing and connecting the GTIL correctly, need not do anything and the unit will do its work automatically.

3. Installation of GTIL With Internal Limiter

3.1 This installation is not require an additional limiter module,Installation is much easier.Clamp the current sensor cable to the hot wire to measure the current,the internal limiter will auto detect the load power and control the inverter output power,excess power will be well controlled.

3.2 External protective device including dc and ac SPD(Surge protection device),dc and ac breaker,etc is recommended to installed in the system.

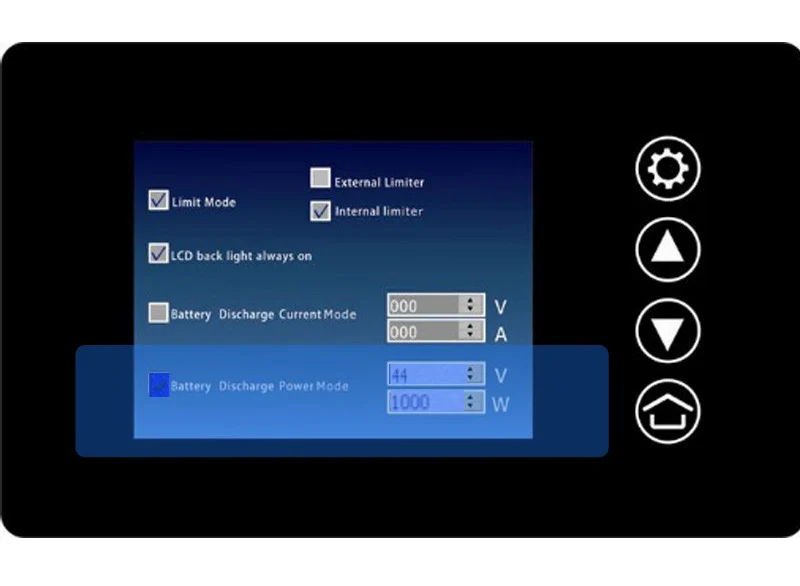

4.Limiter Setting on the LCD of the inverter:

The GTIL include three working mode:

Work as normal GTI without power limitation.

Work under Internal limiter mode

Work under External limiter mode,

Pls make your setting on the LCD and save it,details setting operation,pls read the GTI manual.

5 Battery Discharge Power Mode

New upgraded firmware enable battery or solar limiter current and power model.

User can set the maximum output power of inverter , this can make the inverter work at cooler contition as user want and extend the lifespan of the inverter .
User can set kick in/off voltage of the inverter which can flexible using with battery bank depend on users mind and can prevent battery bank from over discharged .

6 Limiter Module Specification

1. Clamp sensor- Max 100A

2. Wattmeter- Max 9999w

3. Terminal Block-Max 20A

4. Receptacle- max 2000w

5. Clamp sensor signal- 5v AC max mA

6. DC signal Cable- 5v DC, max mA

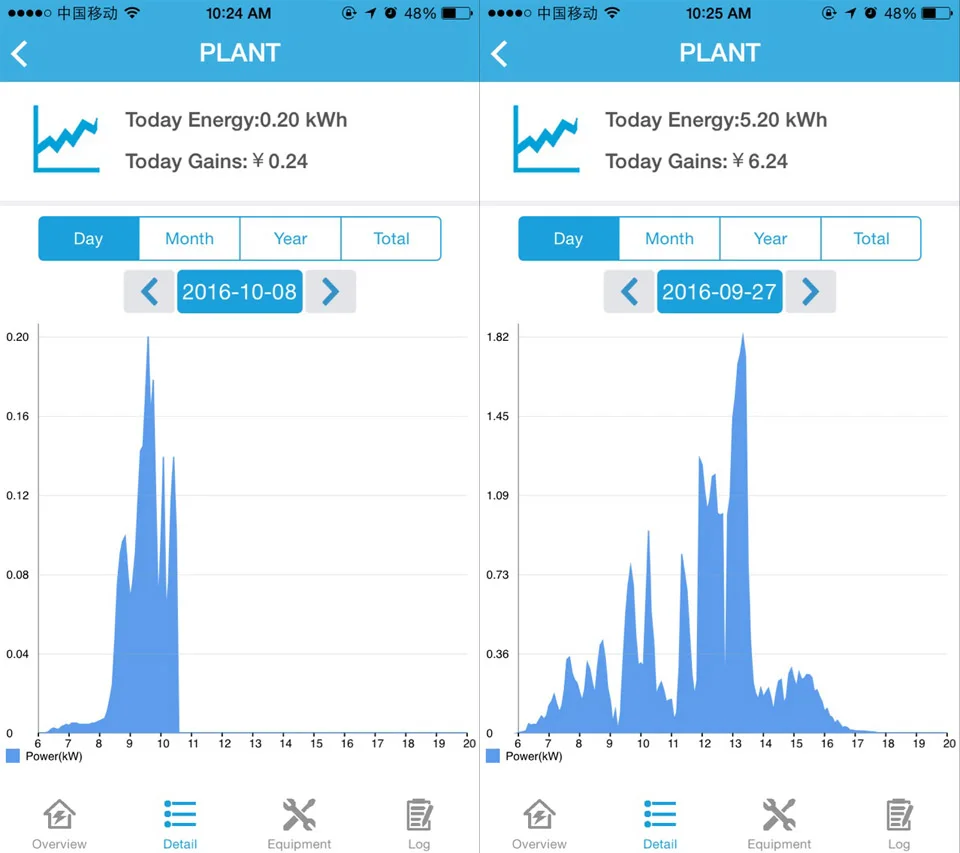

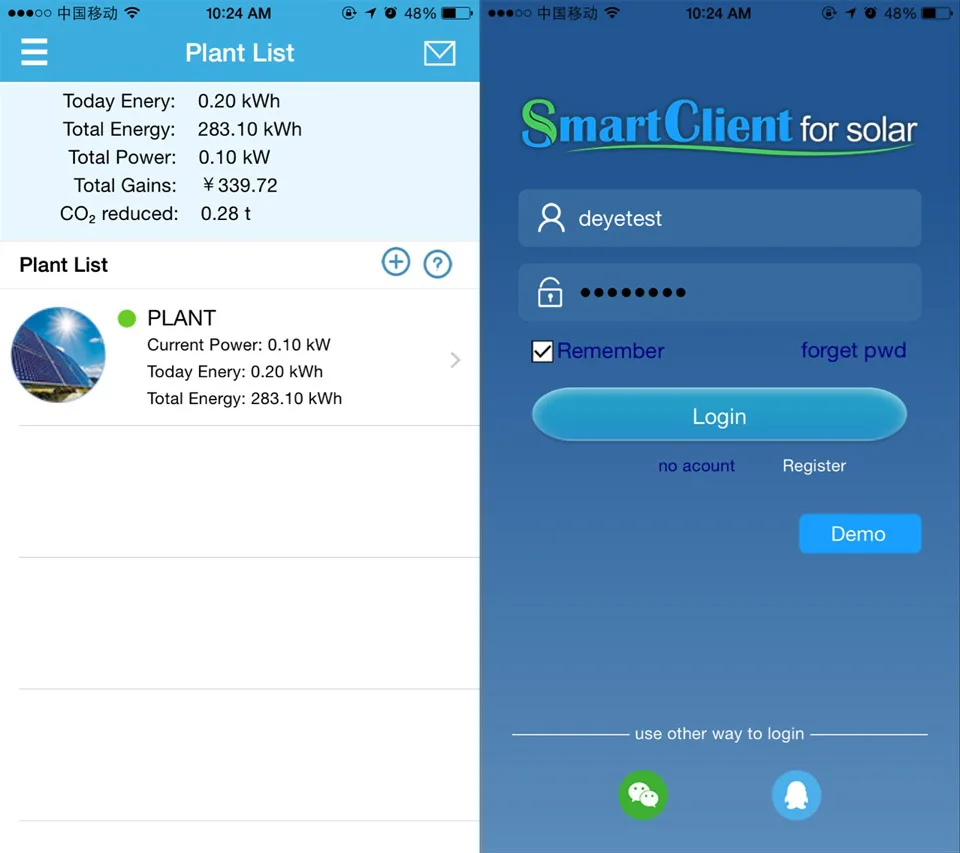

Wifi Introduction

Shipment:

1. We guarantee to ship out within 48 hours after payment confirmation (except Holiday).

2. Delivery time is approx. 7 to 15 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations .

3. EMS express shipping usually takes 3-7 working days dependent on the country delivered to. We are not responsible for any accidents, delays or other issue that are the responsibility of the shipping service.

4. Any import charges or fees are the buyer’s responsibility.

5. Please contact us if you don’t receive it over above 4 weeks, we will solve this problem in a very short time.

6. All our items will be shipped to buyer’s Wholesales jonaki address please confirms your address on jonaki before you order. Please make sure the shipping address is correct. We are not responsible for any wrong or undeliverable addresses.

Feedback:

1. We depend on our jonaki reputation and customer satisfaction to succeed. Therefore, your

2. feedback is extremely important to us.

3. If you love my items please leave me good feedback. Your action will help us offer our milk and bread. I will do the same for you.

4. Please contact us before leaving any negative of neutral feedback. We will work with you to solve any problems.

Return:

1. We provide 1 years warranty. If the item is defective, please notify us within 3 days of delivery.

2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.

3. But shipping fee and insurance is not refundable.

4. Items returned after 7 days of delivery are only eligible for repair.

5. The buyer is responsible for all shipping costs incurred.

Contact:

1. All emails will be answered within 24 hours.

2. Please leave a message in the Trade Manager

3. If you do not receive our reply, please kindly re-sent your email and we will reply you as soon as possible . If you email us and don’t hear a reply, please email again through the jonaki system as sometimes our mail servers have errors.

Item Specifics
Model Number:
1000GTIL2-LCD
Size:
45*30*15cm
Weight:
6kg
Type:
dc to ac
Output Power:
1000W
Input Voltage:
dc 45-90v/DC22-65V
