Product Details


New Arrival 7″ Wired Video Door Phone Intercom System With Recording Function

700 TVL Color Camera, Clearer Video!
Supports Video Recording, Photo Taking

The item you are watching is our new arrival video door phone system with recording function, it will record video automatically when someone press ring the bell. This allows you can see who visited your house when you are not at home or when you missed the call, if the visitors leave a message via the outdoor unit, you can also get more information via the video when you come back.
The monitor is equipped with 7″ high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design. There is an important function compared to old version, this kit supports video recording, it can record a video automatically and it has a micro SD card slot supports Max. 32GB SD card. It is a good choice for your home security and intercom.

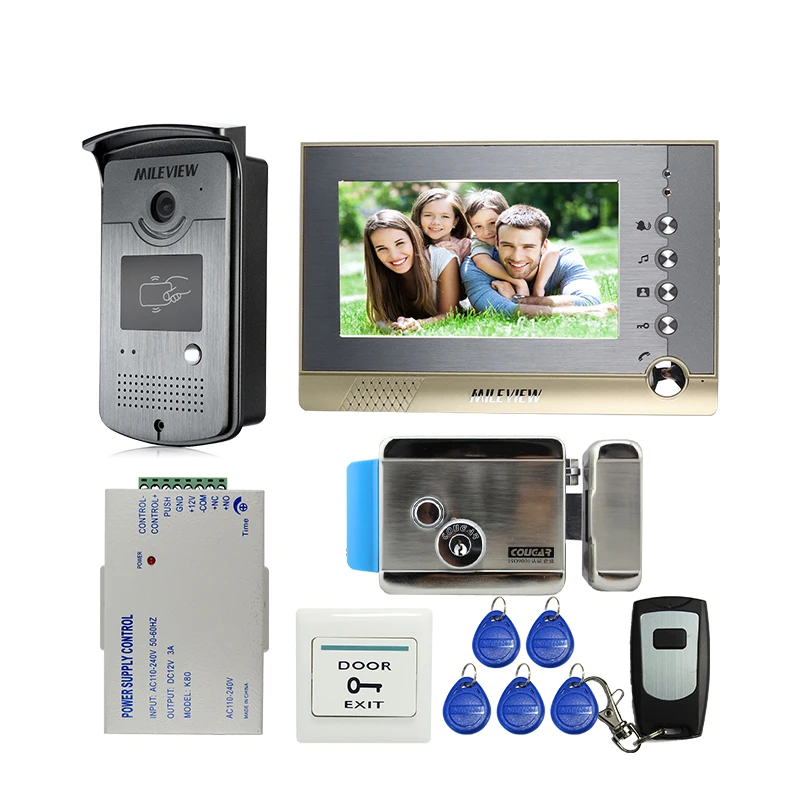

This item contains 1 outdoor unit and 1 indoor unit. We provide a 8G SD card.

Features

  • 7″ TFT digital color LCD;
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom between the outdoor unit and indoor monitor.
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.
  • Brightness, chroma and volume adjustable
  • Ring cancel function, mute mode, do not disturb mode.
  • Comes with 5 RFID keyfobs, a push release button switch.
  • Supports maximum 500 rfid keyfobs
  • Video Recording and Photo Taking Function

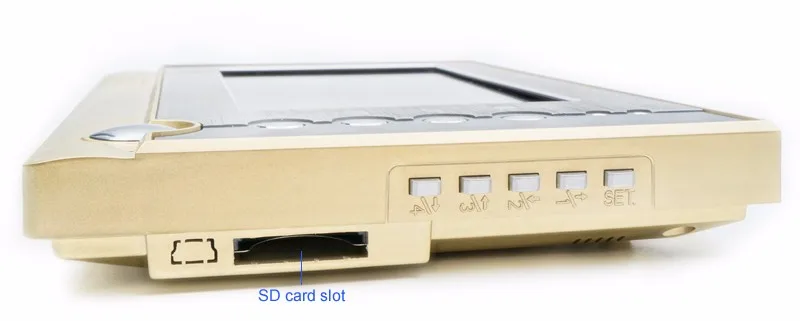

  • Support Max. 32GB SD card
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • Additional monitor available up to 4(optional) and 3 outdoor cameras at most.(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)



Details

Remote Control

With this remote control, you can unlock by pressing the button on the controller within 20 meters

Power supply



This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.
  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Based delay control circuit, lock time can be in 0-15 seconds
  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  • Operative device: E/M Lock, Access Controller, Exit Push Button.

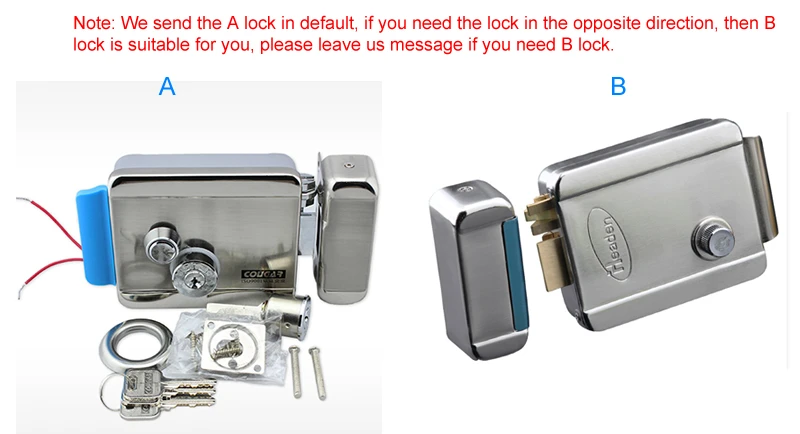

Electric Control Lock

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.

  • NO Mode – (Locked while power is off);
  • Material: Stainless Steel;
  • Authority Certification: CE & MA Approved
  • Application: wood/iron doors;

  • Working Voltage: 12VDC

  • Working Current: 0.2-0.45A

  • Weight: 1500g;

  • Dimension (Face Plate): 120mm x 105mm x 35mm

  • Center distance: 60mm

  • Door distance: 35-55mm

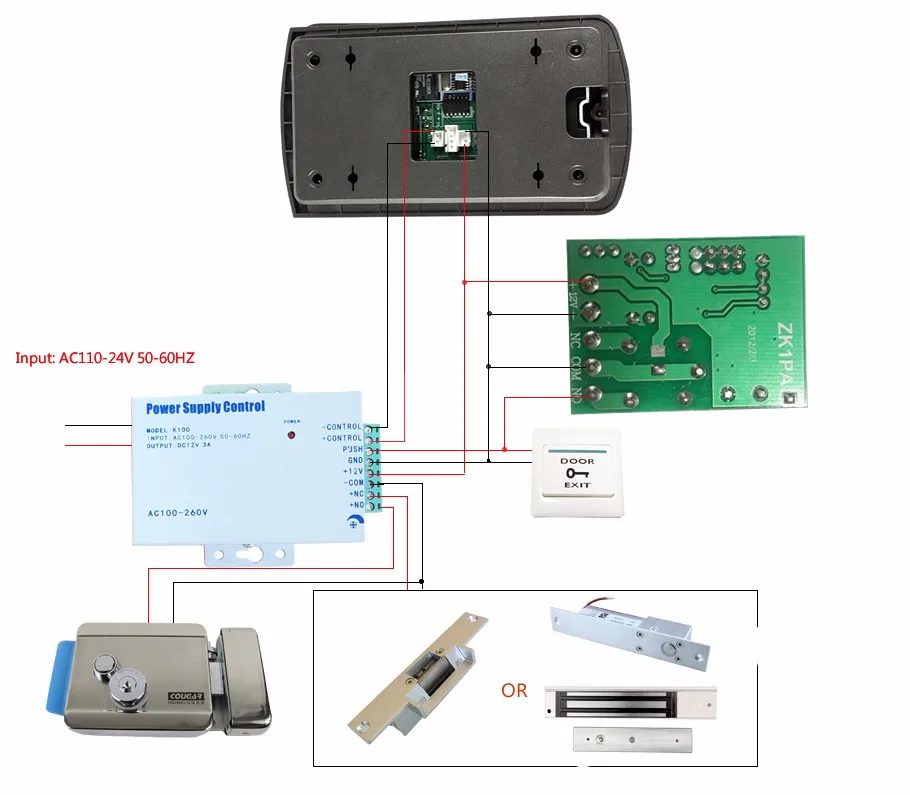

Wiring

Note:

  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
    0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m

Specification

Outdoor Camera
Camera Resolution
700TVL
Night Vision Distance More than 2 meters
Working Temperature -35 degrees ~ +55 degrees
Intensity of Illumination 0.01 lux
Lens 2.3mm
Dimension 174mm(L) x 96mm(W) x 36mm(H)
Installation Surface mounted / Buried wall mounted
Material Metal case
Net Weight 650g
Model ID

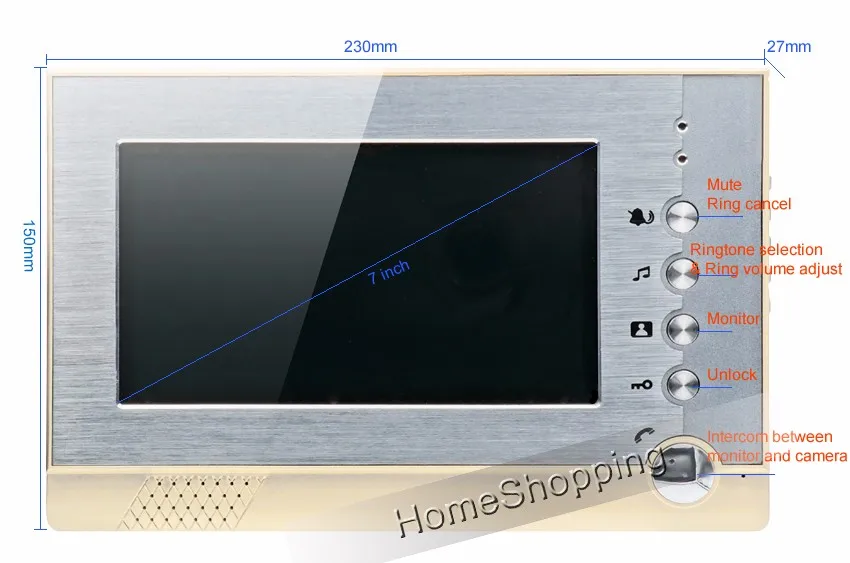

Indoor Monitor
Screen 7″ LCD Digital 16:9 Display
Effective Pixels 800 x 480
Delay Calling Time 120s ± 10%
Delay monitoring time 40s ± 10%
Adapter Input AC100 – 240V 50-60HZ
Adapter Output DC15V
Unit Consumption Less than 6W, standby less than 0.5W
Working Temperature -35 degrees ~ 55 degrees
Installation Wall mounted
Dimension 230mm(L) x 150mm(W) x 27mm(H)
Weight 500g
Model V80P

Package

Item Specifics
Resolution:
> 420 TV Line
Installation:
Wall Mounting
Kit Configuration:
One to One video doorphone
Sensor Size(Inch):
1/3
Type:
Intercom System
Communication Interface:
Wired
Brand Name:
MILEVIEW
Model Number:
XSL-V80P-ID 1V1 + Electric control lock
Doorbell:
Yes
Samrt Home Interface:
No
Waterproof:
Yes
Zone Input:
None
Display Screen Size(inch):
7
Technology:
Digital
Display Screen Type:
color
Access Control:
Inductive Card
IP Camera Interface:
No
Answering Mode:
Hands-free
Material:
Metal ABS
Connection Method:
Wired
Camera Sensor type:
CMOS
Viewing Angle (°):
90
Power:
15V DC
Camera:
700TVL COLOR
Power:
110-240V AC
E-LOCK:
electric control door lock
type:
video intercom / doorphone / doorbell / door intercom camera
function:
intercom / unlock / monitor
monitor:
7 inch color recording screen
video recording:
support
SD card:
8G SD card
waterproof:
support
unlock:
rfid access / remote control
night vision:
support
wiring type:
wired
