Brand : ANNTLENT.
This 70 dB booster works for
1.700MHz Band 12/13/17 .(enhance 4G LTE Data Signal)
2.850/1700MHz Band 5/4 .(enhance 2G Voice/Text/Call Signal or 4G LTE Data Signal )
3.850/1900 MHz Band 5/2 .(enhance 2G 3G Voice/Text/Call Signal )
Before order it, pls confirm your frequency by the way:
AT&T Verizon T-Mobile Cell Phone Signal Booster for US/CA Band 5/4 Cellular Booster 850/1700MHz 4G LTE Signal Repeater for Data
Raise Your Bars
Phonetone’s Home cell phone signal booster increases voice, text and 4G LTE signal strength for many us/canada carrier, including AT&T, Verizon, T-mobile…

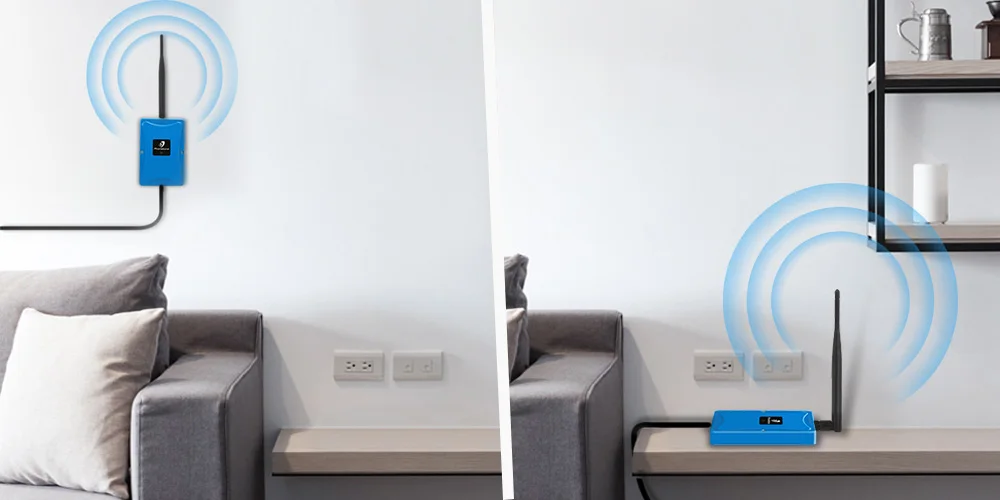

Home Yagi/Whip reduces dropped & missed calls and boosts signal for multiple simultaneous users, covering 1 – 2 rooms up to 2,000 square feet.
Home Yagi/Whip Angle increases signal strength for multiple simultaneous users in 1 – 2 rooms up to 2000 square feet.
Clear and Consistent Signal
Home boosts voice, text and 4G LTE signal strength for many us/canada carrier, including AT&T, Verizon, T-mobile…
Reduce Dropped & Missed Calls
Home booster kits reduce dropped & missed calls and extend battery life for multiple cellular devices.
1) Sleeping Mode: When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
2)Automatic Gain Control : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
4)Automatic Power Shut-down : When the self-oscillation happens and the link attenuation value reaches 20dB, the MCU sends out the instruction and shut-down the PA.
5)MGC (Manual Gain Control): In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-20dB.
You can rotate the Manual Gain Control Knob to the OFF state and turn off the corresponding frequency band.
6) ALC(Automatic Level Control): Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
|Frequency Range 700MHz||Band 12||698 ~ 716MHz||728~ 746 MHz|
|Band 13||776 ~787MHz||746 ~757 MHz|
|Max .Gain||≤ 63dB||≤ 63dB|
|Frequency Range 850/1700MHz||Band 5||824 ~ 849 MHz||869 ~ 894 MHz|
|Band 4||1710 ~ 1755 MHz||2110 ~ 2155 MHz|
|Max .Gain||Band 5||≤ 64dB|
|Band 4||≤ 72dB|
|Frequency Range 850/1900MHz||Band 5||824 ~ 849 MHz||869 ~ 894 MHz|
|Band 2||1850 ~ 1910 MHz||1930 ~ 1990 MHz|
|Max .Gain||Band 5||≤ 64dB|
|Band 2||≤ 72dB|
|Max. Output power||≤20dBm||≤10dBm|
|Automatic Gain Control||≧20dB|
|Automatic shut down||When self-oscillation happen or attenuation value reaches 20dB, power supply is shut down.|
|Spurious Emission||9KHz~1GHz||≦-36dBm @ 3KHz|
|1GHz~12.75GHz||≦-30dBm @ 3KHz|
|LED Indicator||Continuous GREEN @normal;|
|Twinkly GREEN @input signals may be not enough.|
|Continuous YELLOW @ stronger input signals, AGC is working;|
|Twinkly YELLOW@ self-oscillation happen, AGC is working,the attenuation value is more than 12dB .|
|Continuous RED@ power supply is shut down.|
|I /O Port||SMA-Female|
|Power Supply: Input AC100~240V 50/60Hz,output DC 5V|

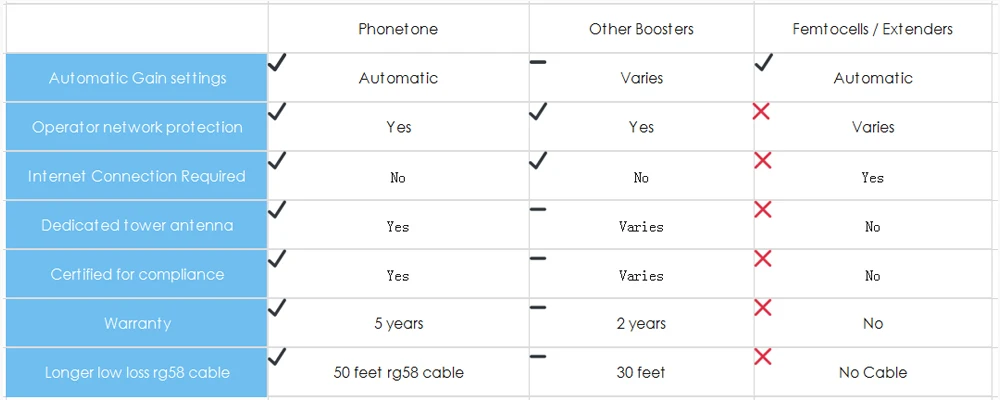

Different points (with other amplifiers)
Coverage comparison (according to the strength of different signals):
Note: The amplifier kit in this link is the second set in the picture — amplifier with directional yagi and Whip angle antenna set
Directional Yagi antenna mount the outside antenna and point in the direction of the strongest signal. Includes pole and wall mounting hardware. Connects to booster with RG-58 coax cable (50 ft included with kit).
Indoor bi-directional amplifier boosts cell signal received from and sent back to the cell tower. Powered by a standard AC power supply.
Whip antenna (omni-directional) rebroadcasts boosted cellular signal to multiple mobile devices. Antenna connects directly to booster.
Why You Want it?
Check your mobile phone frequency before purchase The booster can only amplify signal, it can’t create signal. If there is no outside signal, the booster will not work for you.
Please make sure you can make calls successfully outside your car. The booster can only work with cell phones that has the same frequency band as the booster.

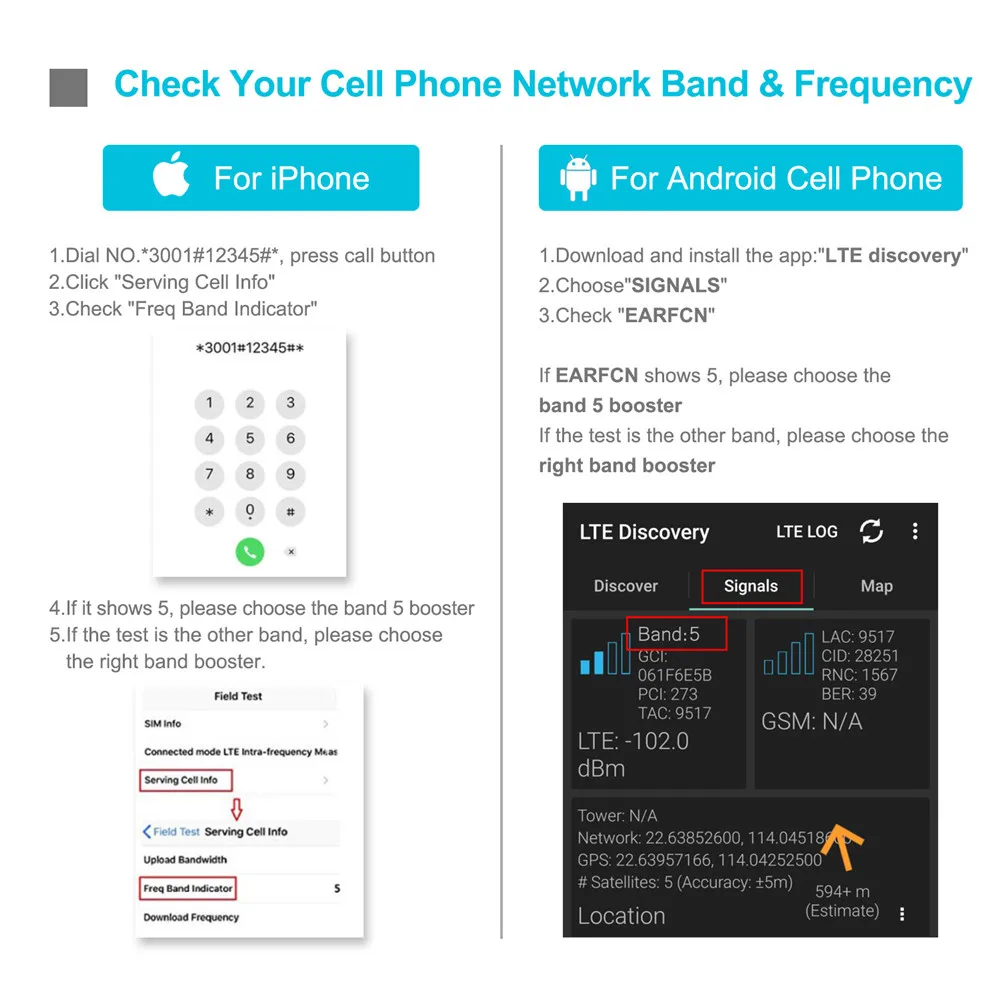

Please check which band your cell phone is using firstly by the methods below:
Dial *3001#12345#*, then press Call button Click ‘Serving Cell Info’ Check ‘Freq Band Indicator’;
For Android phone:
Download and install the app: LTE Discovery, tap ‘SIGNALS’ and check band number.
If it shows
, please choose this booster. If the test result is other number, please choose another booster according to your band.
