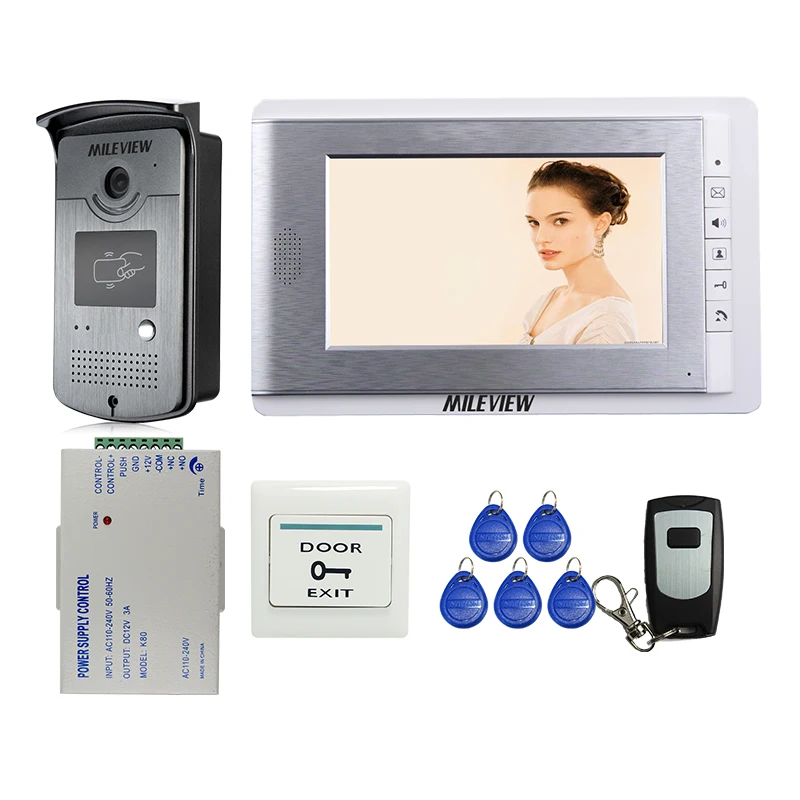

7″ Wired LCD Video Intercom Door Phone RFID Access System
700TVL Camera, Clearer Video!

Description

This Hard-wired Video Door phone Intercom System consists of one 7” color TFT monitor and one door camera. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

In order to satisfy most of the customers, a complete door phone system with 5 RFID keyfobs, a push release button, and a power supply have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.

Features

  • With micro-processing technology, auto-remote control, excellent performance and high reliability.
  • The TFT 7 inch digital color LCD for monitor.
  • Monitor outside manually.
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking.
  • Additional monitor available up to 3(optional) and 4 outdoor cameras at most. it needs a multi-door controller when install 2/3/4 outdoor cameras.
  • TFT color screen with low power consumption, no radiation and high definition.
  • Hands-free intercommunication.
  • Brightness, color of video adjustable.
  • Ring volume and intercom volume of indoor monitor are adjustable.
  • The RFID outdoor unit supports maximum 500 pieces rfid keys. It comes with 2 management cards to add / delete keys.
  • The frequency of RFID reader is 125KHZ.
  • The frequency of the remote control kit is 433MHZ.
  • 16-chord melody rings for option.
  • 700TVL CMOS camera. Results in clearer video.
  • Do not disturb mode. off ring function.
  • Supports intercom between two indoor monitors.

Details

Power supply



This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

  • It controls electric lock directly.
  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Based delay control circuit, lock time can be in 0-15 seconds
  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  • Operative device: E/M Lock, Access Controller, Exit Push Button.

Application

Note:

  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
    0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m

Specification

Outdoor Camera
Camera Resolution
700TVL
Night Vision Distance More than 2 meters
Working Temperature -35 degrees ~ +55 degrees
Intensity of Illumination 0.01 lux
Lens 2.3mm
Dimension 174mm(L) x 96mm(W) x 36mm(H)
Installation Surface mounted / Buried wall mounted
Material Metal case
Net Weight 650g
Model ID
Indoor Monitor
Screen 7″ LCD Digital 16:9 Display
Effective Pixels 800 x 480
Delay Calling Time 120s ± 10%
Delay monitoring time 40s ± 10%
Adapter Input AC100 – 240V 50-60HZ
Adapter Output DC15V
Unit Consumption Less than 6W, standby less than 0.5W
Working Temperature -35 degrees ~ 55degrees
Installation Wall mounted
Dimension 240mm(L) x 150mm(W) x 23mm(H)
Weight 500g
Model V70C

Package

NOTE: We have the user manual in English , French, Spanish and Russian language.
We send the user manual in English/Russian language in default, please leave us message if you want the user manual in other language.

Item Specifics
Sensor Size(Inch):
1/3
Communication Interface:
Wired
Samrt Home Interface:
No
Access Control:
Inductive Card
Display Screen Size(inch):
7
Answering Mode:
Hands-free
IP Camera Interface:
No
Technology:
Digital
Zone Input:
None
Type:
Intercom System
Camera Sensor type:
CMOS
Viewing Angle (°):
90
Power:
15V DC
Doorbell:
Yes
Kit Configuration:
One to One video doorphone
Material:
Metal ABS
Model Number:
XSL-V70C-ID 1V1 + power controller
Installation:
Wall Mounting
Brand Name:
MILEVIEW
Connection Method:
Wired
Display Screen Type:
color
Waterproof:
Yes
Resolution:
> 420 TV Line
Camera:
700TVL COLOR
Power:
110-240V AC
size:
7 inch color Screen
feature:
rfid access , remote control
packing:
color packing box
video intercom:
support
type:
video intercom / doorphone / doorbell
night vision:
support
waterproof:
support outside working
intercom between two monitors:
support
RFID reader:
125khz
