Product Details


WIRED 7″ TFT LCD HOME VIDEO INTERCOM SYSTEM

700 TVL Camera, Clearer Video!
Unlock Via Remote control, ID keyboards!

Description

This Hard-wired Video Door phone Intercom System consists of one 7” color TFT monitor and one door camera. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

In order to satisfy most of the customers, a complete door phone system with 5 RFID keyboards, a push release button, a electric control lock, a remote control and a power supply have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.

Features

  • With micro-processing technology, auto-remote control, excellent performance and high reliability.

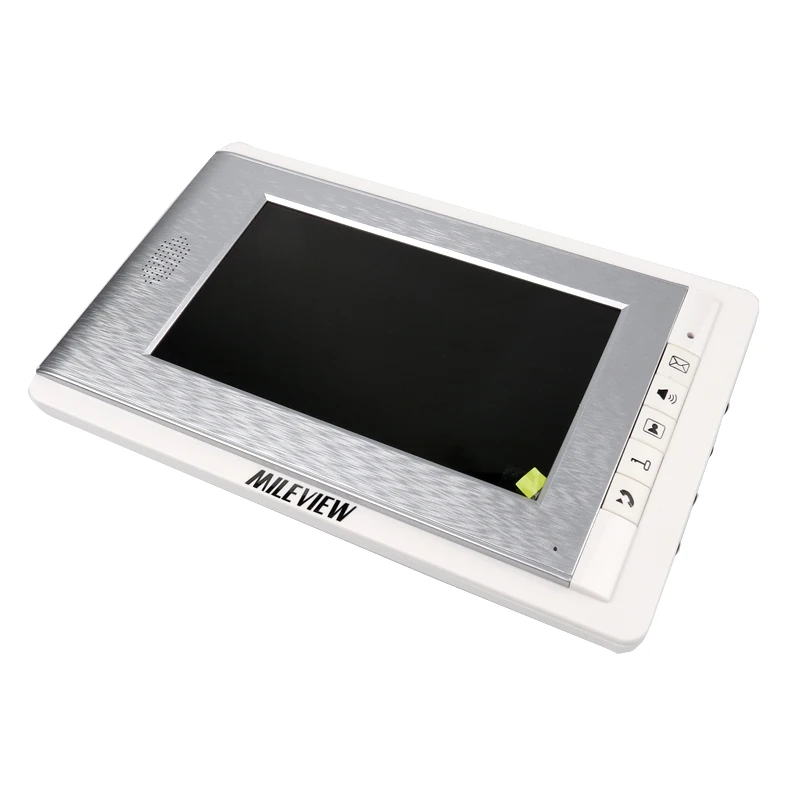

  • The TFT 7 inch digital color LCD for monitor.
  • Monitor outside manually.
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking.
  • Additional monitor available up to 3(optional) and 4 outdoor cameras at most. it needs a multi-door controller when install 2/3/4 outdoor cameras.
  • TFT color screen with low power consumption, no radiation and high definition.
  • Hands-free intercommunication.

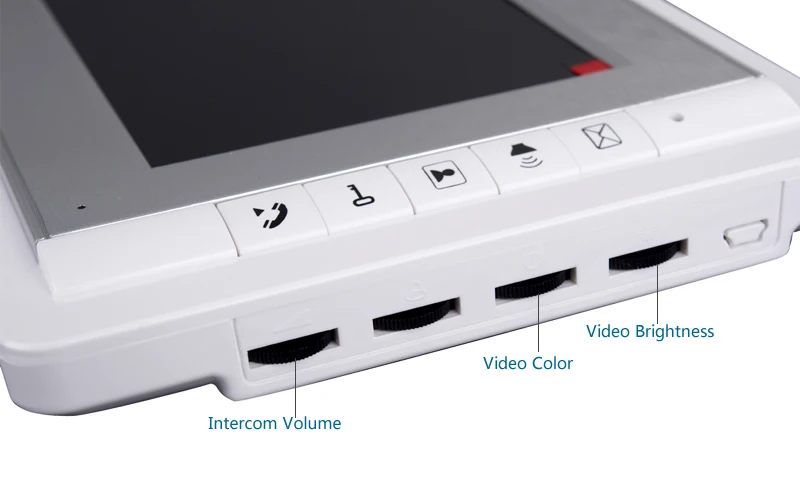

  • Brightness, color of video adjustable.
  • Ring volume and intercom volume of indoor monitor are adjustable.
  • The RFID outdoor unit supports maximum 500 pieces rfid keys. It comes with 2 management cards to add / delete keys.
  • The frequency of RFID reader is 125KHZ.
  • The frequency of the remote control kit is 433MHZ.
  • 16-chord melody rings for option.
  • 700TVL CMOS camera. Results in clearer video.
  • Do not disturb mode. off ring function.
  • Supports intercom between two indoor monitors.

Details

It is a door phone which can show you what is going on outside doors on a clearly 7″ full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you known the outside world staying in the house.

Remote Control

If you purchase this Access Control System now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:

Power supply



This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

  • It controls electric lock directly.
  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Based delay control circuit, lock time can be in 0-15 seconds
  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  • Operative device: E/M Lock, Access Controller, Exit Push Button.

Electric Control Lock

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.

  • NO Mode – (Locked while power is off);
  • Material: Stainless Steel;
  • Authority Certification: CE & MA Approved
  • Application: wood/iron doors;

  • Working Voltage: 12VDC

  • Working Current: 0.2-0.45A

  • Weight: 1500g;

  • Dimension (Face Plate): 120mm x 105mm x 35mm

  • Center distance: 60mm

  • Door distance: 35-55mm

Wiring

Note:

  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
    0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m

Specification

Indoor Monitor
LCD Screen 7″ TFT
Resolution 800×480
Calling duration About 120 seconds
Monitor duration About 60 seconds
Power Consumption Working: 9W; Standby: 2W
Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -35 ~ 50 Celsius
Installation Wall mounting
Material PMMA and ABS

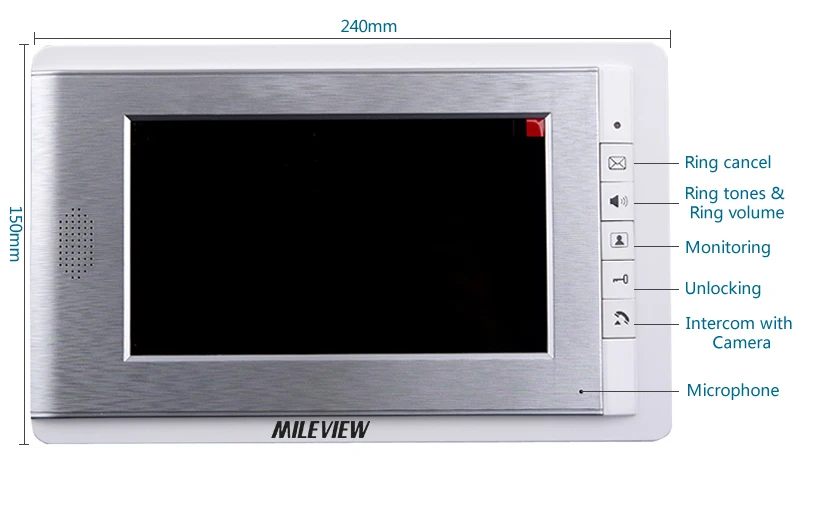

Size 240(L) * 150(W) * 23(H)mm
Net Weight 500g
Outdoor Camera
Camera Lens CMOS
Resolution 700TVL
illumination 0LUX / F1.2
Night Vision Visible within 1m
Power Supply DC 15V, 0.5A
Working Temperature -35 ~ 50 Celsius
Case Aluminum panels, waterproof
Installation Wall mounting / Buried wall mounting
Size 182(L) *85(W) * 40(H)mm
Net Weight 640g

Package

NOTE: We have the user manual in English , French, Spanish and Russian language.

Item Specifics
Communication Interface:
Wired
Samrt Home Interface:
No
Access Control:
Inductive Card
Display Screen Size(inch):
7
Sensor Size(Inch):
1/4
Answering Mode:
Hands-free
IP Camera Interface:
No
Technology:
Digital
Zone Input:
None
Type:
Intercom System
Camera Sensor type:
CMOS
Viewing Angle (°):
92
Power:
15V DC
Doorbell:
Yes
Kit Configuration:
One to One video doorphone
Material:
Metal ABS
Installation:
Wall Mounting
Brand Name:
MILEVIEW
Connection Method:
Wired
Model Number:
XSL-V70C-ID 1V1 + Electric control lock
Display Screen Type:
color
Waterproof:
Yes
Resolution:
> 420 TV Line
Camera:
700TVL
Power:
110-240V AC
E-lock:
Electric control door lock
color:
white
size:
7 inch Color Screen
unlock:
rfid access control , remote control
power adapter:
AU EU US UK
packing:
color packing box
video intercom:
support
type:
video intercom / doorphone / doorbell
waterproof:
support
night vision:
support
